ATEX Tank climbing robot,ATEX tank wall cleaning robot ,industrial cleaning robot,chemical tank cleaning robot

Tank wall climbing robot /Hydroblasting robot/Tank Wall cleaning robot /Tank painting robot

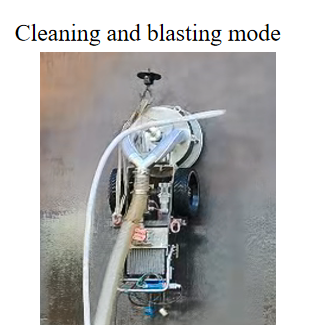

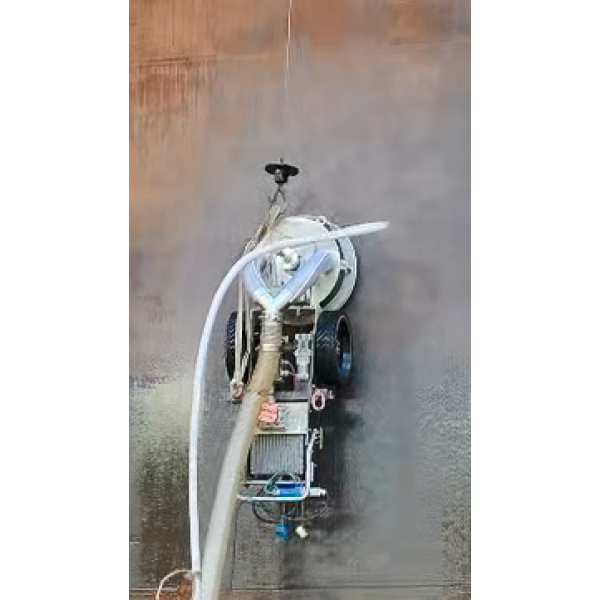

The Alpha all in one multi-purpose ATEX ZONE 1 wall-climbing robot, with its exceptionally powerful magnetic suction wheels, can move as agilely as a gecko on tank surface, effortlessly handling tasks once deemed highly challenging, whether on oil storage tanks, ship hulls, or intricate pipeline systems.The main function is to clean the tank surface,hydroblasting the rust and do the pray painting for tank.It allows the robot to change from one mode to another working mode easily.

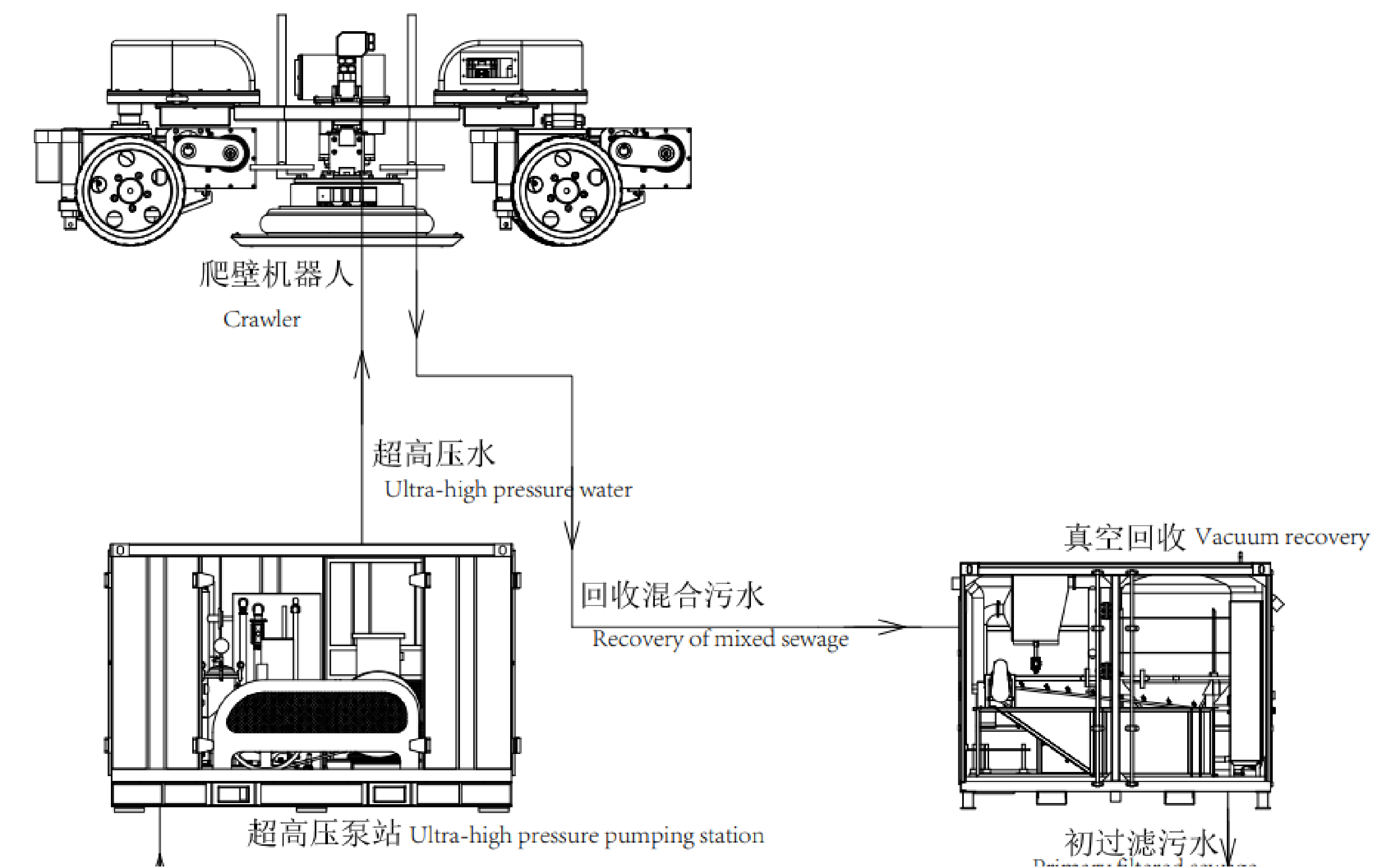

Workflow chart of the tank cleaning robot

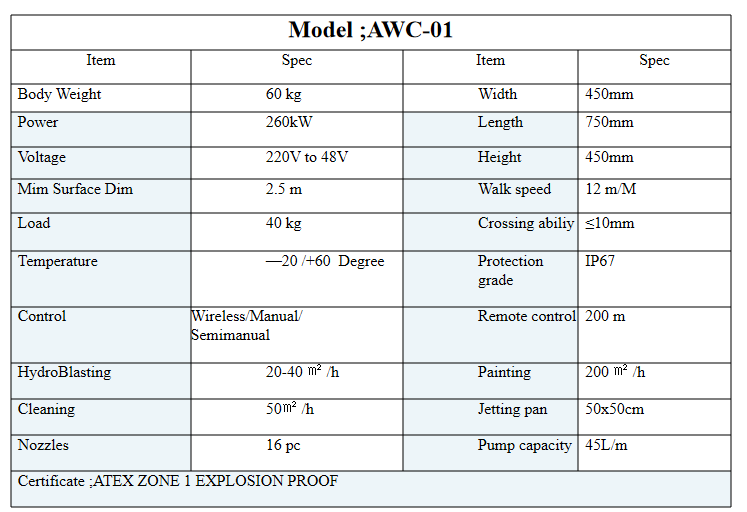

Specification of Alpha Multi purpose Tank Cleaning Robot

Introduction of each part function

Power system :The robot is powered by a 250kw diesel generator for ultra high presure water pump generating 280MPA pressure for hydro blasting and painting operation.

Control system :It can be operated directly on the container operation platform by remote control (5G detection and remote control) or wire control, which is simple, convenient, fast, safe and reliable.

Vacuum recovery system:All the paint residue and wastewater removed by the robot are completely absorbed, leaving the steel plate surface clean

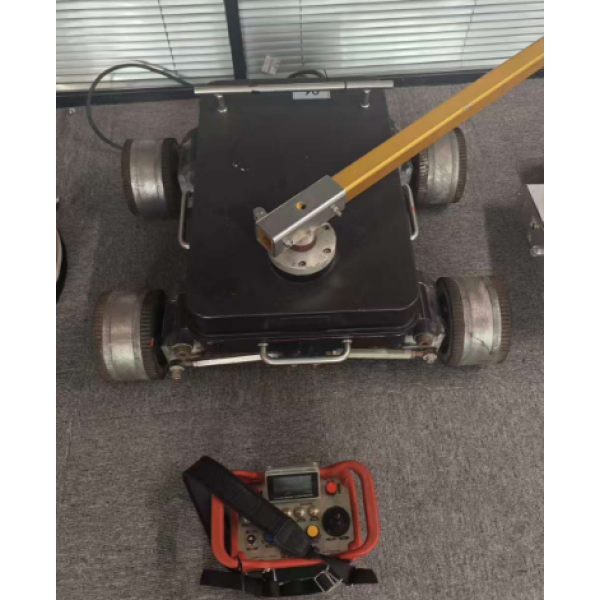

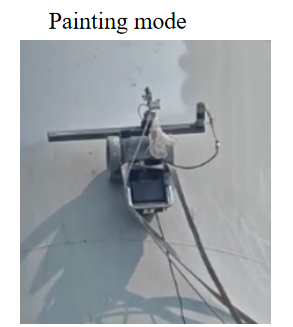

Airless spray system ：A high-pressure airless spray machine is an industrial painting equipment that uses a high-pressure plunger pump to pressurize the coating, atomize it through a specially designed nozzle, and spray it onto the surface of objects.

Multi purpose tank cleaning system is the best partner for ATEX Zone 0 tank bottom sludge cleaning robot.

At Alpha ,we not only manufacture ATEX Zone 0 and ATEX Zone 1 tank cleaning robot ,but also other kinds of industrial cleaning robot ,dredging robot ,pigging  robot and complete sludge treatment system ,feel free to contact us for any cleaning robot information.
